Typical Applications:

• Tubing drains remove the hazard of handling stuck pumps, by pulling dry strings
• When tubing cannot be rotated or pulled to actuate mechanical draining devices
• Where corrosion builds up restricts the "S" drain from operating properly
• Provides a means to pump down the tubing to kill a gassy well before pulling
• Eliminates expenses and wasted time associated with wet jobs
• Oversized tubing pumps that do not have drain valves operating or none at all
• Allows producer to double traveling, and standing, valves, and still pull dry strings
• Drains tubing for submersible pumps equipped with a check valve and pumps in a high angle or straight hole
• Drains tubing above anchors and packers

Operation:

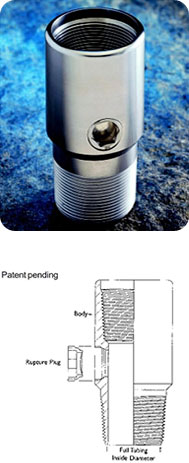

The Fike HTD is simple in design and utilizes applied hydraulic pressure to rupture the membrane which opens the fluid port to the casing annulus, with no restrictions. The Fike HTD should be installed box up and pin down at the desired depth in the tubing string. For hydrostatic head at the drain, and determination of the proper disc pressure (psi), multiply .433 psi/ft by the drain depth. Then select the disc with an additional 2,000 psi above the nominal fluid load.

(Note:Disc selection is calculated from pressure differential. Contact Fike or your local Sales Representative for further assistance.)

Service:

The Fike HTD is best serviced by your local distributor to ensure proper disc preparation, assembly and testing. In applications where this is not possible, the Fike HTD can be field serviced, with moderate care, and attention to detail.

Selection Guide:

Nominal Size	Outside Diameter	Drill Diameter	Total Length	Part Number
2-3/8" (60 mm)	3-1/16" (78 mm)	1.901"  (48 mm) mm)	7" (178 mm)	A8327-1
2-3/8" (60 mm)	3-518" (92 mm)	1.901" (48 mm)	7-1/4" (184 mm)	A8327-4
2-7/8" (73 mm)	3-518" (92 mm)	2.347" (60 mm)	7-1/2" (191 mm)	A8327-2
2-7/8" (73 mm)	4" (102 mm)	2.347' (60 mm)	7-3/4" (197 mm)	A8327-5
3-1/2"' (89 mm)	4-1/2" (114 mm)	2.867" (73 mm)	8-1/8" (206 mm)	A8327-3
4" (102 mm)	5'' (127 mm)	3.351"  (85 mm)	8-3/8'' (213 mm)	A8327-8
4-1/2" (114 mm)	5-9/16" (141 mm)	3.833'' (97 mm)	8-5/8" (219 mm)	A8327-7

Burst Pressures: (All above sizes available in each of the following opening pressures)

Burst Pressure (psig)	Part Number	Burst Pressure (psig)	Part Number
1500  (102 atm)	A8219-1	4500  (306 atm)	A8219-4
2000  (136 atm)	A8219-5	5000  (340 atm)	A8219-8
2500  (170 atm)	A8219-2	5500  (374 alm)	A8219-9
3000  (204 atm)	A8219-6	6000  (408 atm)	A8219-10
3500  (238 atm)	A8219-3	6500  (442 atm)	A8219-11
4000  (272 atm)	A8219-7	7000  (476 atm)	A8219-12

Rupture plug installation tool is part number 029612

Sizes:

The Fike HTD is available in the above standard nominal sizes, using standard API EUE tubing threads. Non-Standard configurations are ava1lable on an engineered design basis. Full tubing inside diameters are standard on all nominal (stock) sizes.

Burst Pressure/Temperature Conversion Table:

This table is the theoretical calculation of temperature vs. burst pressures.

72°F (psig)	100°F (psig)	200°F (psig)	300°F (psig)	400°F (psig)	500°F (psig)
1500	1488	1428	1410	1395	1407
2000	1984	1904	1880	1860	1876
2500	2480	2308	2350	2325	2345
3000	2976	2856	2820	2790	2814
3500	3472	3332	3290	3255	3283
4000	3968	3808	37o0	3720	3752
4500	4464	4284	4230	4185	4221
5000	4960	4760	4700	4650	4690
5500	5456	5236	5170	5115	5159
6000	5952	5712	5640	5580	5628
6500	6448	6188	6110	6045	6097
7000	6944	6664	6580	6510	6566
